Power Quality Solutions

We specialize in conducting detailed system studies and PQS measurements, adhering to IEEE-519 standards. Our team collects power quality parameters and analyzes the data to create customized systems for each project. We provide online monitoring services through an advanced analytics portal to ensure optimal performance post-installation. Our personalized approach sets us apart as a professional and client-centered service provider, catering to the unique requirements of industries and utility companies.

We provide an extensive selection of Power Quality Solutions, with tailor-made options available for Reactive Power Management. By implementing advanced technology and process enhancements, we have consistently delivered successful results in minimizing various losses for our clients. Committed to delivering comprehensive solutions, we are devoted to meeting all power quality requirements with utmost efficiency.

Power Quality Solutions

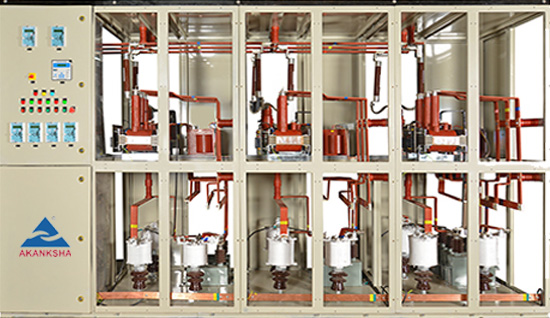

Specifications

  • Nominal Voltage: 3.3kV, 6.6kV, 12 kV, 33kV
  • 50 Hz / 60 Hz • Step Configuration: As per customer’s requirement
  • Protection: HRC Fuses
  • Reactor: As per customer’s requirement (No reactor / 0.2 % / 6%)
  • Switching: Vacuum Contactor • Single / Double star with RVT or NCT protection
  • Indoor / Out-Door version

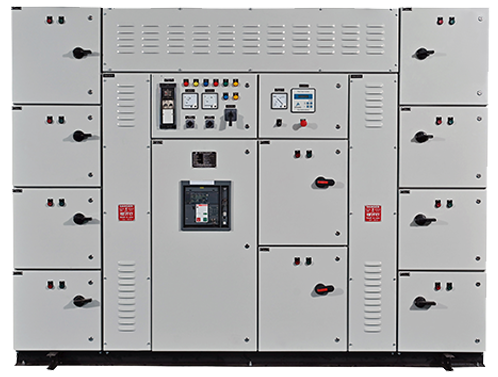

Specifications

  • Normal Voltage 440 Volts, 3 Phase, 50 Hz / 60 Hz Protection class: IP 4X / 5X
  • Cooling: Self-convection (take care of sufficient convection)/Forced Cooling
  • Reactor: As per customer’s requirement (No reactor / 0.2 % / 7% or 14 %)
  • Switching: Contactor switched OR Thyristor switch (TSM)
  • Using our TSM modules, we can give APFC panel with 1 kVAr Resolution for Dynamic Fast Fluctuating Load
  • Combination of Static Var Generator (SVG) + Active Harmonic Filter (AHF) for most effective harmonic filtering and power factor improvement

Specifications

  • Normal Voltage 440 Volts, 3 Phase, 50 Hz / 60 Hz Protection class: IP 4X / 5X
  • Cooling: Self-convection (take care of sufficient convection)/Forced Cooling
  • Reactor: As per customer’s requirement (No reactor / 0.2 % / 7% or 14 %)
  • Switching: Contactor switched OR Thyristor switch (TSM)
  • Using our TSM modules, we can give APFC panel with 1 kVAr Resolution for Dynamic Fast Fluctuating Load
  • Combination of Static Var Generator (SVG) + Active Harmonic Filter (AHF) for most effective harmonic filtering and power factor improvement

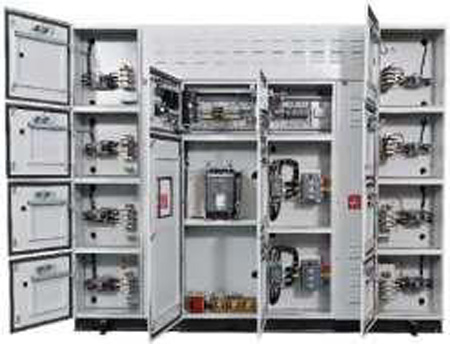

Specifications

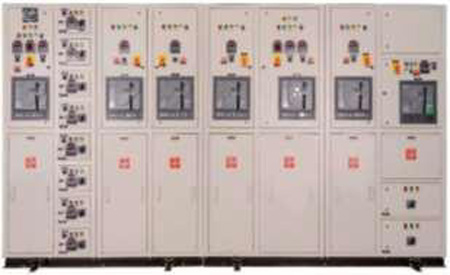

  • Customized Power Control / Motor control/ Variable Frequency Drive Panels are manufactured as per the customer’s requirement
  • Normal Voltage 440 Volts, to 33 kV
  • 3 Phase 4 wire / 3 phase 3 wire
  • 50 Hz / 60 Hz
  • Protection class: IP 4X / 5X
  • Cooling: Self-convection (take care of sufficient convection)/Forced Cooling

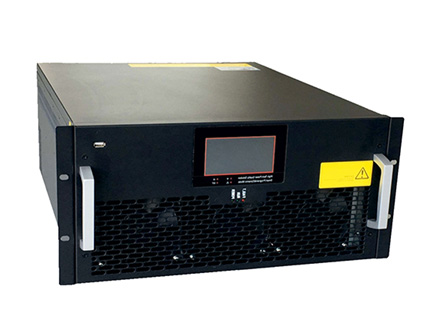

Specifications

  • Active Harmonic Filters (AHF) and Static Var Generators (SVG)
  • Normal Voltage 400 Volts, to 590 Volts
  • 3 Phase 4 wire / 3 phase 3 wire
  • 50 Hz / 60 Hz
  • Protection class: IP 4X / 5X
  • Cooling: Self-convection (take care of sufficient convection)/Forced Cooling

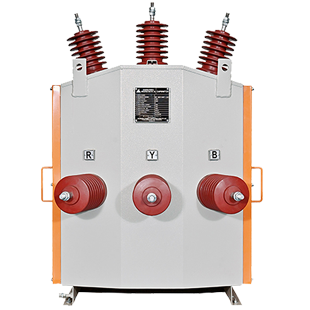

Specifications

  • Outdoor / indoor application
  • Rated voltage: 3.3kV / 6.6 /11 kV at 50 Hz
  • Rated current: 400 A
  • Rated Capacitor switching current: 100/200A
  • Rated short-time current: 10 kA rms for 1 sec
  • Electrical / Mechanical endurance: 1,00,000 operations

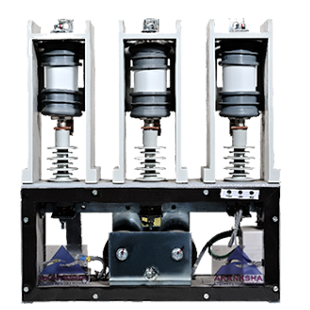

Specifications

  • Indoor / Indoor application
  • Rated voltage: 3.3kV / 6.6 /11 kV at 50 Hz
  • Rated current: 400 A
  • Rated Capacitor switching current: 100/200 A
  • Rated short-time current: 10 kA rms for 1sec
  • Electrical / Mechanical endurance:100000 operations

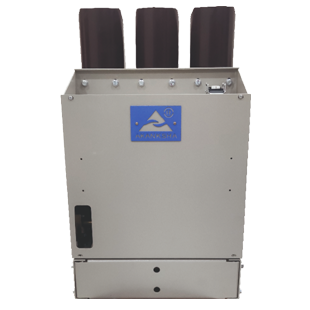

Specifications

  • In door / In door application
  • Rated voltage: 11 kV at 50 Hz
  • Rated current: 1250 A
  • Rated short circuit peak withstand current:37.5 kA rms for 1 sec
  • Rated power frequency with voltage – 75 kV peak
  • Electrical / Mechanical endurance: 50,000 . 10,000 operations

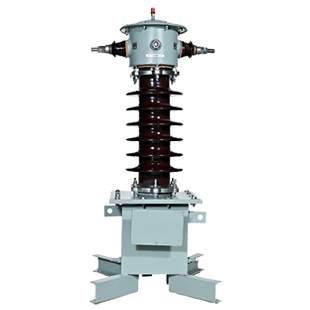

Specifications

  • CT for the system voltage up to 33 kV Construction available in Live Tank & Dead Tank types.
  • Ip up to 3600A for dead tank design Is = 5 or 1A, Up to 3 cores
  • Ith up to 40 kA Burden & Accuracy class as per IS-2705, IEC-60044
  • Conformance to other standards on request 1.2 / 50 micro sec.
  • Lightning impulse voltage up to 170 kVp
  • Ingress protection of secondary terminal Box : IP 55

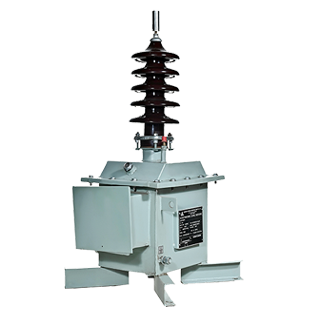

Specifications

  • VT for system voltage up to 33 kV Single or Double pole VT (Only up to 33 kV)
  • Burden up to 200 VA Voltage factor 1.2 Un continuous,1.5 Un 30s, 1.9 Un 30s, 1.9 Un 8h
  • Accuracy & protection class as per IS-3156, IEC-60044
  • Conformance to other standards on request 1.2 / 50 micro sec.
  • Lightning impulse voltage up to 170 kVp
  • Ingress protection of secondary terminal Box : IP 55

Specifications

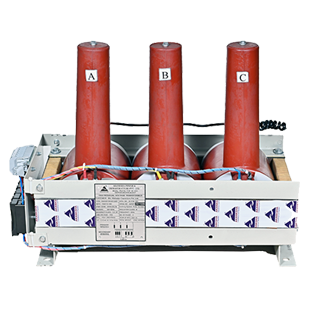

  • Resin cast dry type RVT up to 11 kV
  • Oil cooled type RVT up to 11 kV
  • Burden and accuracy class as per IS-2705/3156/IEC-60044
  • Conformance to other standards on request

Specifications

  • CT – PT for system voltage up to 33 kV Ip up to 1250
  • A Burden & Accuracy class as per IS2705, IEC- 60044
  • Conformance to other standards on request

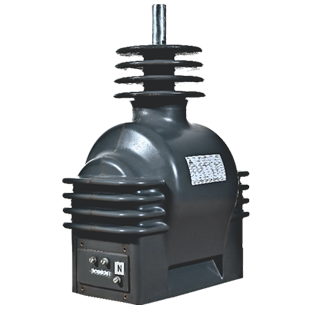

  • Outdoor Cycloaliphatic Resin cast CT-PT for system voltage up to 33 kV Ip up to 1250

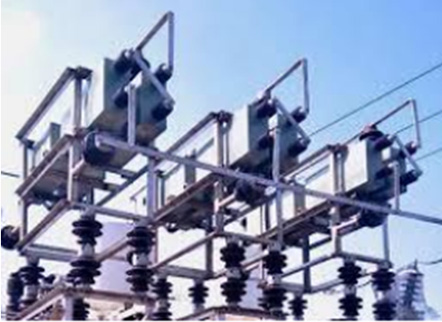

Specifications

  • Nominal Voltage: up 36 kV, 50/60 Hz
  • Nominal Power: up to 15 mVAr
  • Assembly: Indoor / Out-door
  • Installation: open rack, kiosks
  • Step Configuration: Fixed single step, Variable switching steps.
  • Reactor: air, iron core, inrush current damping or de-tuned filters
  • IEC 60871-1,2,4, IEC 60099-6 , IEC 60076-6, IEC 61869-2 IEC 60831, IEC 61921,IEC 60439NOMINAL VOLTAGE: up to 36 kV, 50 Hz
  • BANK : up to 10 mVAr
  • Protection : Expulsion Fuses
  • Inrush or filterreactors
  • Switching: Capacitor Switch
  • Single / double star with protection
  • Out-Door version

Specifications

  • Nominal Voltage: up 36 kV, 50/60 Hz
  • Nominal Power: up to 15 mVAr
  • Assembly: Indoor / Out-door
  • Installation: open rack, kiosks
  • Step Configuration: Fixed single step, Variable switching steps
  • Reactor: air, iron core, inrush current damping or de-tuned filters
  • IEC 60871-1,2,4, IEC 60099-6 , IEC 60076-6, IEC 61869-2 IEC 60831, IEC 61921,IEC 60439
  • NOMINAL VOLTAGE: up to 12 kV, 50 Hz
  • Step Configuration: up to 5 mVAr, in multiple steps.
  • Protection : HRC Fuses
  • Inrush or filterreactors
  • Switching: Vacuum Contactor.
  • Single / double star with protection
  • Indoor / Out-Door version

Specifications

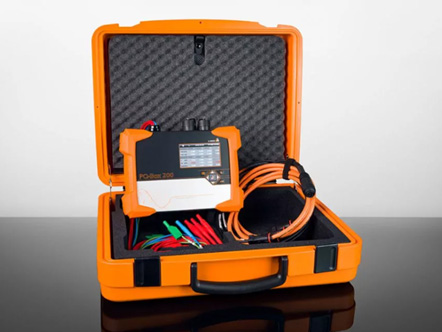

  • Power quality analyser in accordance with IEC 61000-4-30 Class A
  • Comprehensive energy management solutions, with a focus on ISO 50001 certification and a range of products and services to optimize energy consumption and efficiency.
  • Software platform enables comprehensive energy monitoring, analysis, and reporting, supporting various functions like energy data management, network analysis, and automation.
  • Offers a range of measurement devices for monitoring energy consumption, including Power Quality Analysers.

Transfer Ladle

  • Application :

    Mixer of mouth & leap area.

  • Service Temp. :

    1500°C Max.

  • Base Material:

    LF Bauxite, Sillimanite and high purity cement

  • Special Features:

    Very high strength & replaces back up lining.

  • Application :

    Mixer of mouth & leap area.

  • Service Temp. :

    1600°C Max.

  • Base Material:

    LF Bauxite, Sillimanite, WFA and high purity cement.

  • Special Features:

    Very high strength & volume stability.

  • Application :

    Mixer of mouth & leap area.

  • Service Temp. :

    1600°C Max.

  • Base Material:

    LF Bauxite, BTA, WFA and high purity cement.

  • Special Features:

    Very low rebound loss & excellent resistance to Corrosion & Erosion to metal.
